OUR BENCLAY RANGE

WhatsApp Image 2026-06-03 at 18.55_edited.jpg
WhatsApp Image 2026-06-03 at 18.55.41.jpeg
WhatsApp Image 2026-06-03 at 18.55.40.jpeg
WhatsApp Image 2026-06-03 at 18.55.41 (1).jpeg

BENCLAY 1000A

BENCLAY 1000B

BENCLAY HD-1

BENCLAY XD-1

Based on a Highly Purified Quaternary Ammonium Salt Bentonite Clay Chemistry

Based on a Quaternary Ammonium Modified Hectorite Bentonite Clay Chemistry

Based on a Highly Purified Quaternary Ammonium Salt Bentonite Clay Chemistry

Based on a Quaternary Ammonium Modified Hectorite Bentonite Clay Chemistry

Details
Details
Details
Details

Chemical Analytics & Technical Data

A precise structural breakdown of our core Organoclay additives, formulated for optimal industrial gelling and dispersion.

Appearance

Bulk Density

Moisture Content @ 105C

( WHITE FREE FLOWING POWDER )

( 1.60 - 1.70 G/CM³ )

BENCLAY 1000A

( MAX 3.5% )

Granularity

Loss on Ignition

Shelf Life

Packing

( 200 MESH / > = 95% )

2 YEARS FROM DATE OF MANUFACTURE

AVAILABLE IN 25 KG PAPER BAGS

MAX 35%

Based on a Quaternary Ammonium Modified Hectorite Bentonite Clay Chemistry, BENCLAY 1000A is a traditional, highly purified Organoclay Rheological Additive. Modified from Quaternary Ammonium Salts, It's advantages over traditional additives include:-

​

​

​

  • Can be used with high speed shearing devices.

  • Can be incorporated into existing systems without any additional setup required.

  • Allows control over Thixotrophy and Stability even in crude oil/diesel systems.

  • Capable of furnishing great suspension to the drilling mud/fluid being used.

  • Comes with wall protection and anti-filtration properties.​

  • Can maintain a stable physical performance even under a pressure of over 100 atms at over 230 degrees Celsius.

​

​

Applications of BENCLAY 1000A  include, but are not limited to:-

  • Industrial Greases.

  • Heavy-Duty / Industrial and High Performance Coating

  • Heat Resistance Paint

  • Powder Coating & Aerosol spray

  • Road Marking Paint

  • Industrial Adhesive

  • Printing Ink

  • Oil based Drilling  and Free Stick Mud

Product Images

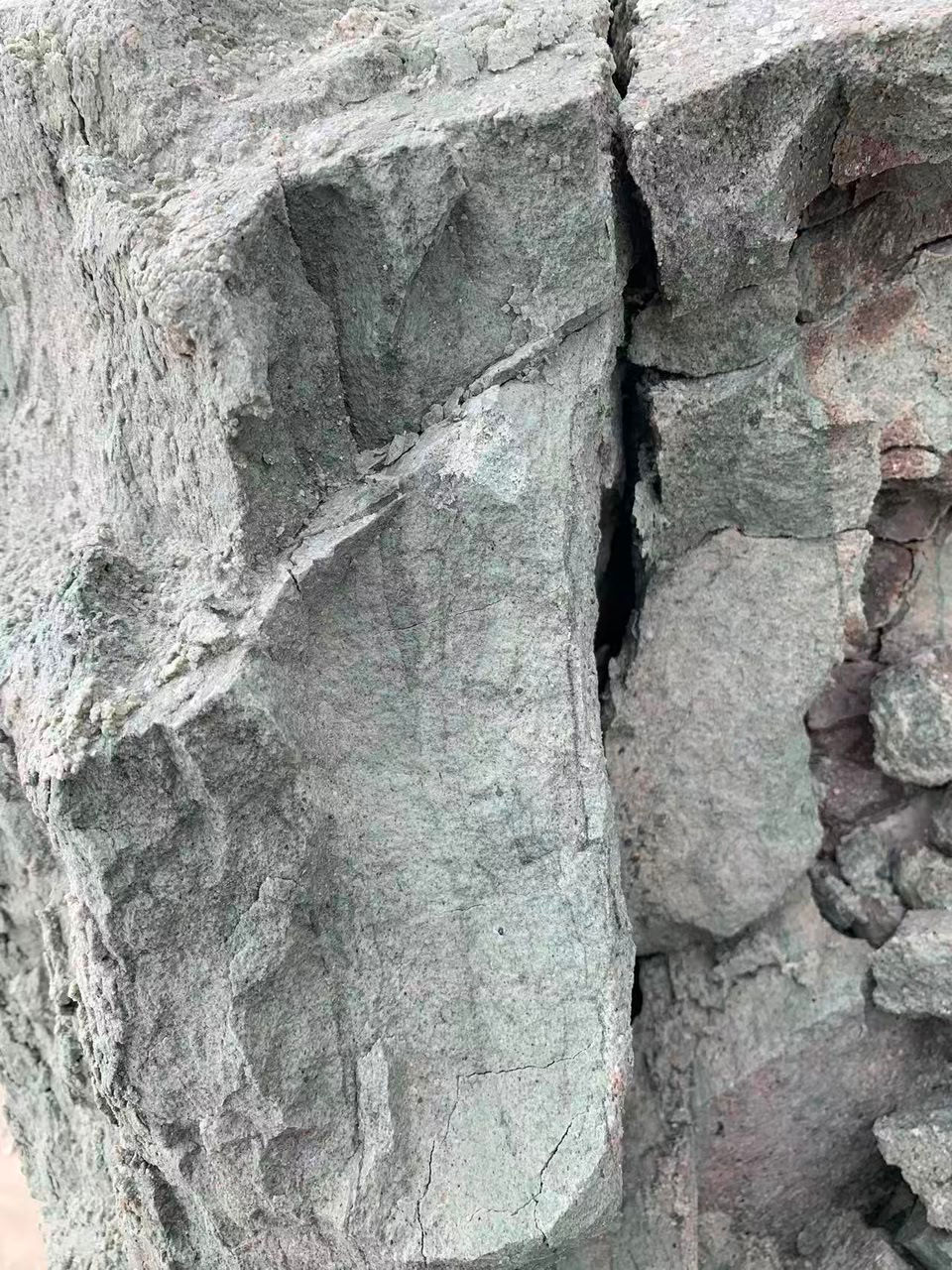

benclay 1000a clay
benclay1000a gel

RECOMMENDED USAGE

  1. The recommended dose of BENCLAY 1000A is between 0.2 to 2% of the mixture, based on total formulation.

  2. Polar Activator is normally 30-50% of the organoclay amount.

  3. Suggested polar activators for BENCLAY 1000A are:-

             i)Methanol + Water in the ratio 95 : 5

             ii)Ethanol + Water in the ratio 95 : 5

             iii)Acetone

​

Original Clay

Finished  Gel

NO

Pre Gel Required?

Chemical Analytics & Technical Data

A precise structural breakdown of our core Organoclay additives, formulated for optimal industrial gelling and dispersion.

Appearance

Bulk Density

Moisture Content @ 105C

( WHITE FREE FLOWING POWDER )

( 1.60 - 1.70 G/CM³ )

BENCLAY 1000B

( MAX 3.5% )

Granularity

Loss on Ignition

Pas Viscosity(MPa.S)

Packing

( 200 MESH / > = 95% )

>= 1.5

AVAILABLE IN 25 KG PAPER BAGS

MAX 35%

Based on a Quartenary Ammonium Modified Hectorite Bentonite Clay Chemistry, BENCLAY 1000B is a multipurpose and economical Rheological Additive developed to be a cost effective and single inventory additive for users. An international countertop to the BENGEL 828 and BENTONE 27 additives, It's advantages over traditional additives include:-

​

​

  • Can be used without the need of a polar activator, or the need to make a pre-gel.

  • Can be incorporated into existing systems without any additional setup required.

  • Allows control over Thixotrophy and Stability even in crude oil/diesel systems.

  • Capable of furnishing great suspension to the drilling mud/fluid being used.

  • Easy to sag and settle, along with maintaining system flow and leveling.

  • Can maintain a stable physical performance even under a pressure of over 100 atms at over 230 degrees Celsius.

​

​

Applications of BENCLAY 1000B include, but are not limited to:-

  • Industrial Greases.

  • Heavy-Duty / Industrial and High Performance Coating

  • Heat Resistance Paint

  • Powder Coating & Aerosol spray

  • Road Marking Paint

  • Industrial Adhesive

  • Printing Ink

  • Oil based Drilling  and Free Stick Mud

Product Images

benclay 1000b clay
benclay 1000b gel

RECOMMENDED USAGE

  1. The recommended dose of BENCLAY 1000B is between 0.2 to 2% of the mixture, based on total formulation weight.

  2. BENCLAY 1000B powder can be directly incorporated into the manufacturing process during the grinding stage.

Original Clay

Finished Gel

2 YEARS FROM DATE OF MANUFACTURE

Shelf Life

Chemical Analytics & Technical Data

A precise structural breakdown of our core Organoclay additives, formulated for optimal industrial gelling and dispersion.

Appearance

Bulk Density

Moisture Content @ 105C

( WHITE FREE FLOWING POWDER )

( 0.52 G/M³ )

BENCLAY HD-1

( MAX 3.5% )

Granularity

Loss on Ignition

Pas Viscosity(Mpa.S)

Packing

( 200 MESH / > = 95% )

>=1.5

AVAILABLE IN 25 KG PAPER BAGS

MAX 50%

Modified from fine quality Bentonite and Organoclay chemicals, BENCLAY HD-1 is a super dispersible Organoclay Additive designed for low, medium and part high polarity solvent based coating and/or resin systems. Contributing outstanding dispersibility and storage stability,BENCLAY HD-1's advantages over traditional additives include:-

​

​

  • Can be used without the need of a polar activator, or the need to make a pre-gel.

  • Excellent thickening and dispersibility with good KU and Brookfield viscosities building.

  • Allows control over Thixotrophy and Stability even in crude oil/diesel systems.

  • Capable of furnishing great pigment suspension with good flow properties.

  • Easy to sag and settle control, and to maintain system flow and leveling.​

  • Highly suited for systems with low to medium and part high polarity levels.

​

​

Applications of BENCLAY HD-1 include, but are not limited to:-

  • Wood Coatings

  • Heavy-Duty / Industrial and High Performance Coating

  • Anti Corrosion and Container Coatings

  • Powder and Marine Coatings

  • Auto OEMs and Refinishing Paints

  • Industrial Adhesive

  • Printing Ink

  • Anti Fouling Paints.

Product Images

benclay hd-1 clay
benclay hd-1 gel

RECOMMENDED USAGE

  1. The recommended dose of BENCLAY HD-1  is between 0.3 to 2% of the mixture, based on total formulation weight.

  2. For best results, disperse BENCLAY HD-1 for 5-10 minutes in your solvent/resin.

Original Clay

Finished  Gel

4 YEARS FROM DATE OF MANUFACTURE

Shelf Life

Chemical Analytics & Technical Data

A precise structural breakdown of our core Organoclay additives, formulated for optimal industrial gelling and dispersion.

Appearance

Bulk Density

Moisture Content @ 105C

( WHITE FREE FLOWING POWDER )

( 1.60 - 1.70 G/CM³ )

BENCLAY XD-1

( MAX 3.5% )

Granularity

Loss on Ignition

Pas Viscosity(Mpa.S)

Packing

( 200 MESH / > = 95% )

>=1.5

AVAILABLE IN 25 KG PAPER BAGS

MAX 50%

Based on a modified Quaternary Ammonium Hectorite Bentonite Clay Chemistry, BENCLAY XD-1 is a multipurpose and economical Rheological Additive designed to be a single inventory, cost effective product. A countertype to the BENTONE SD-1 additive, It's advantages over traditional additives include:-

​

​

  • Can be used without the need of a polar activator, or the need to make a pre-gel.

  • Can be incorporated into existing systems without any additional setup required.

  • Allows control over Thixotrophy and Stability even in crude oil/diesel systems.

  • Capable of furnishing great suspension to the drilling mud/fluid being used.

  • Easy to sag and settle control, and to maintain system flow and leveling.​

  • Can maintain a stable physical performance even under a pressure of over 100 atms at over 230 degrees Celsius.

​

​

Applications of BENCLAY XD-1 include, but are not limited to:-

  • Industrial Greases.

  • Heavy-Duty / Industrial and High Performance Coating

  • Heat Resistance Paint

  • Powder Coating & Aerosol spray

  • Road Marking Paint

  • Industrial Adhesive

  • Printing Ink

  • Anti Fouling Paints.

Product Images

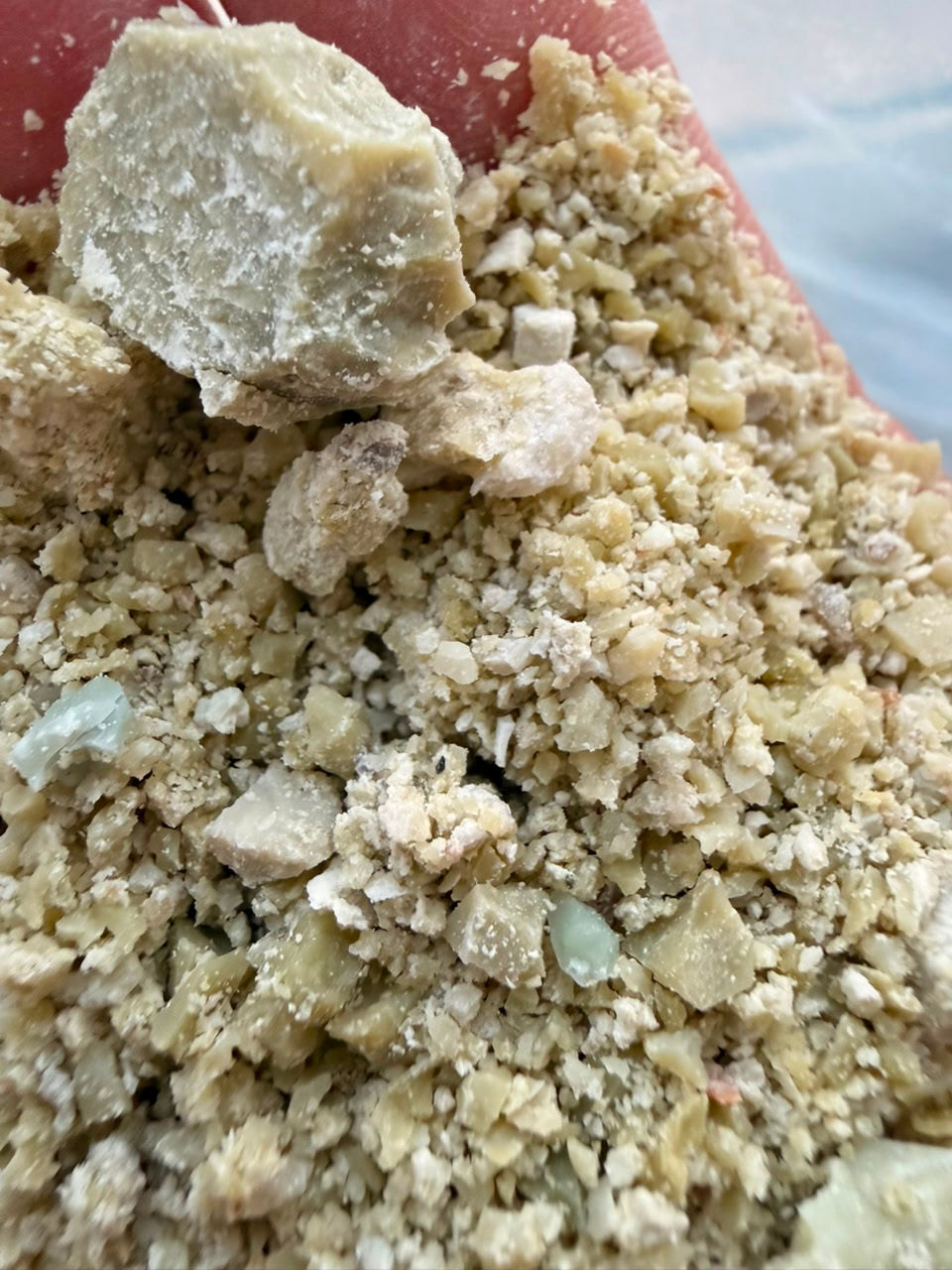

benclay xd-1 clay
benclay xd-1 gel

RECOMMENDED USAGE

  1. The recommended dose of BENCLAY XD-1  is between 0.2 to 2% of the mixture, based on total formulation weight.

Original Clay

Finished  Gel

2 YEARS FROM DATE OF MANUFACTURE

Shelf Life

Industrial Standards

Engineered for Reliability. Certified for Global Excellence.

ISO 9001:2015

Strict adherence to international quality management systems ensures consistency in every batch of ICLAY 21 and BENCLAY products.

Performance Reliability

Engineered for consistency and stability, our additives deliver dependable performance across diverse formulations and operating conditions.

Batch Integrity

Every production run undergoes intensive rheology testing in our state-of-the-art facility to guarantee flawless performance and dispersion.

Safety Standards

Strict adherence to safety standards is maintained during production to ensure optimal handling procedures and workplace safety compliance.
